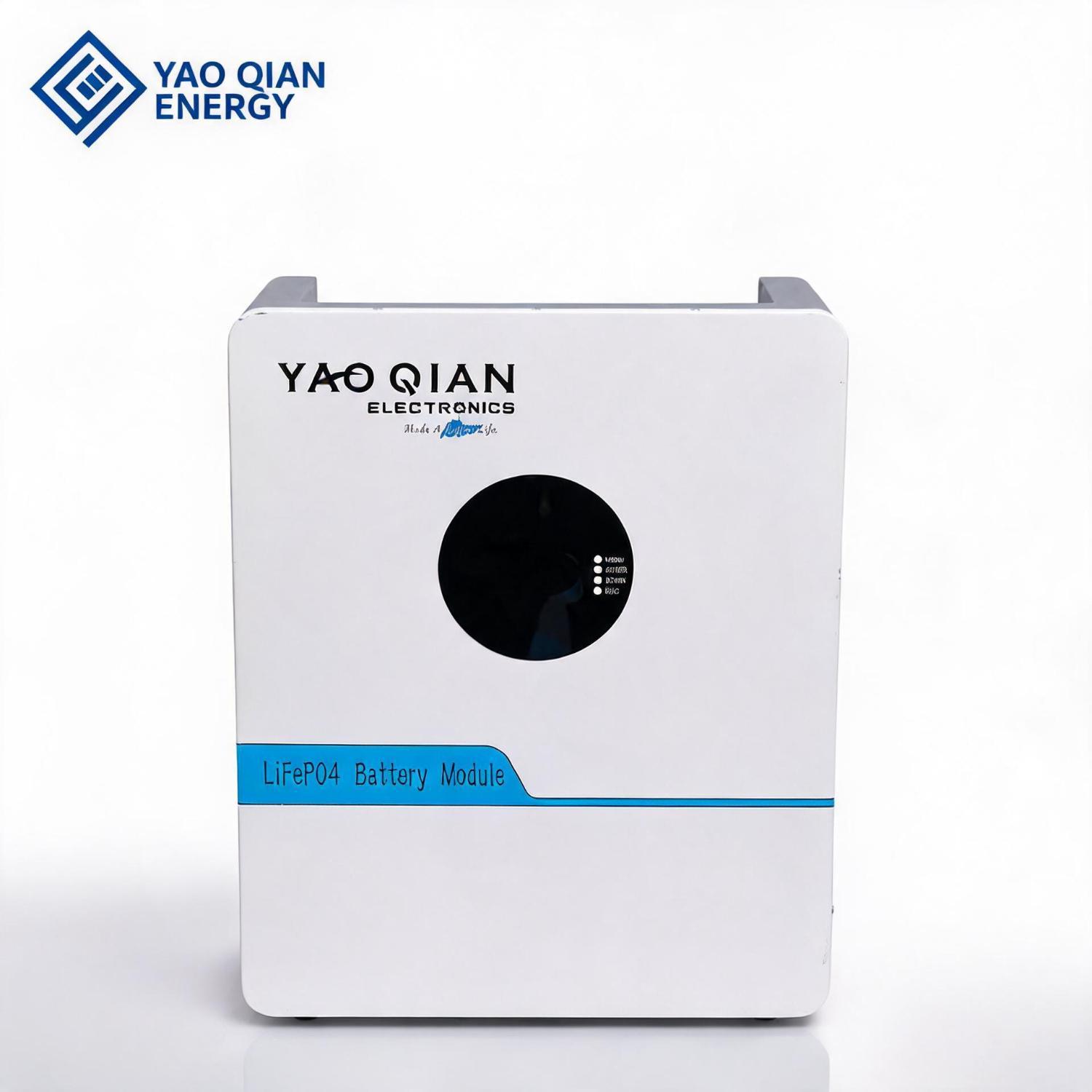

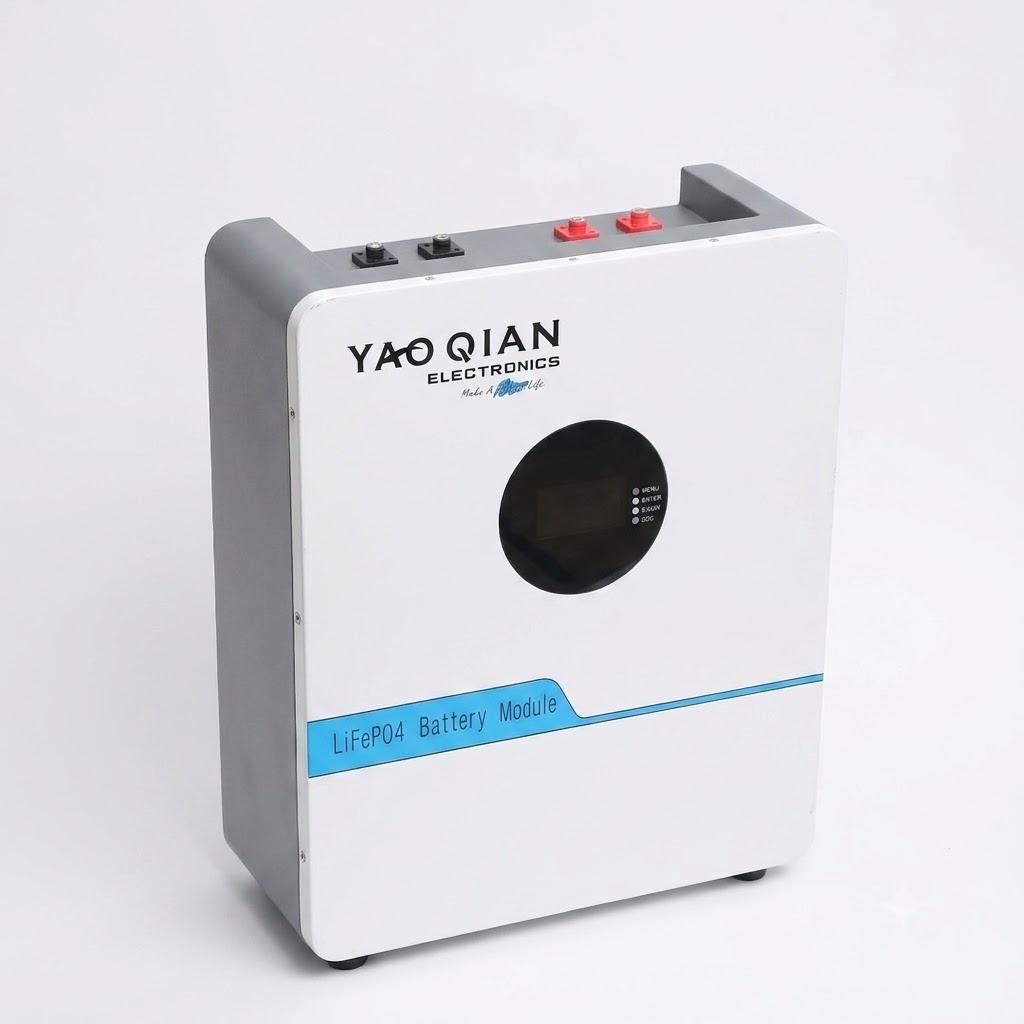

Residential Wall Mounted Battery 5KWH
Product Highlights
1. 6000+ Cycle LifePremium LiFePO4 cells provide excellent durability and more than 10 years of reliable energy storage performance.

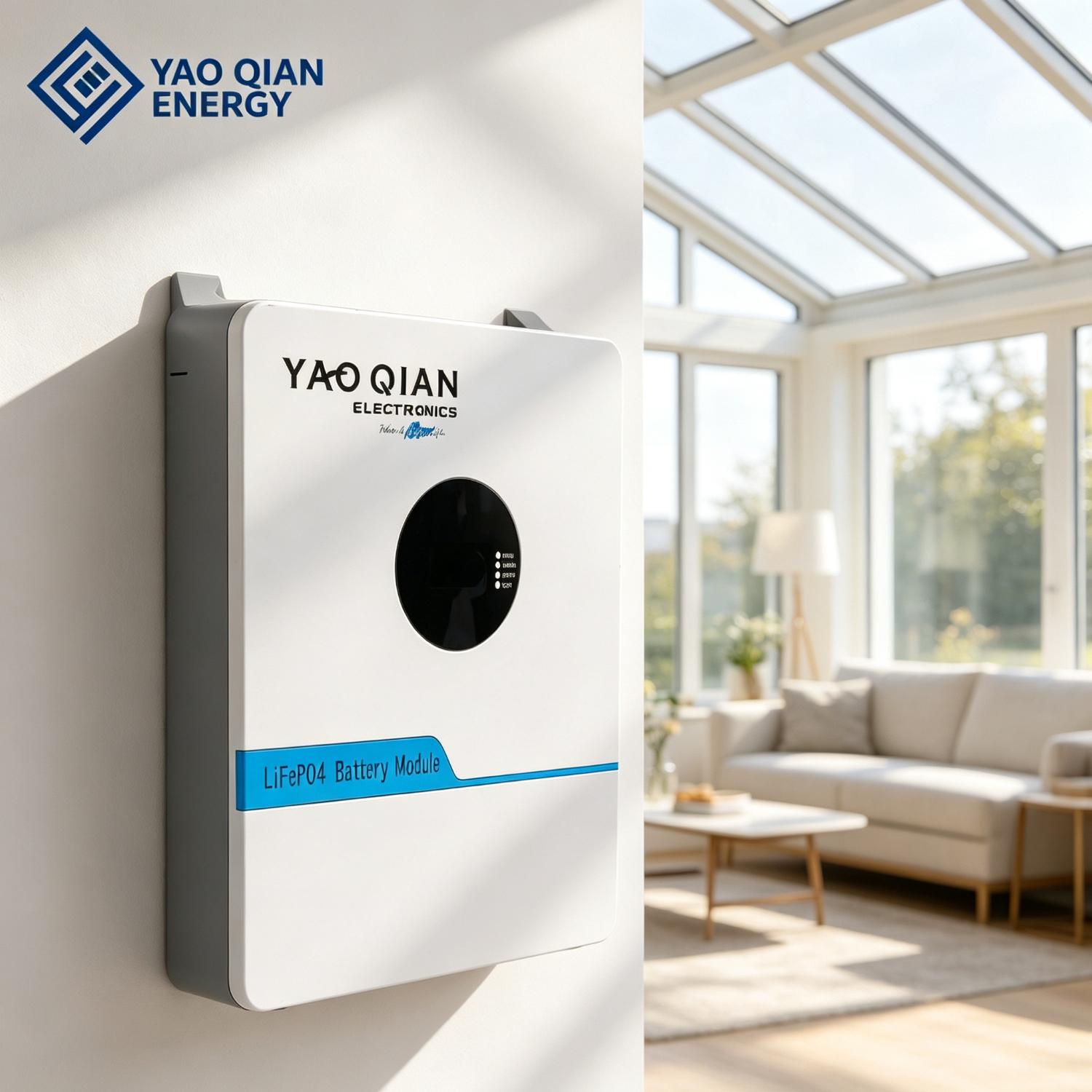

2. Ultra-Slim Wall Mounted DesignSpace-efficient installation with a modern appearance, perfect for residential solar energy storage applications.
3. Intelligent Battery Management SystemSmart BMS monitors battery status in real time and provides multiple safety protections.

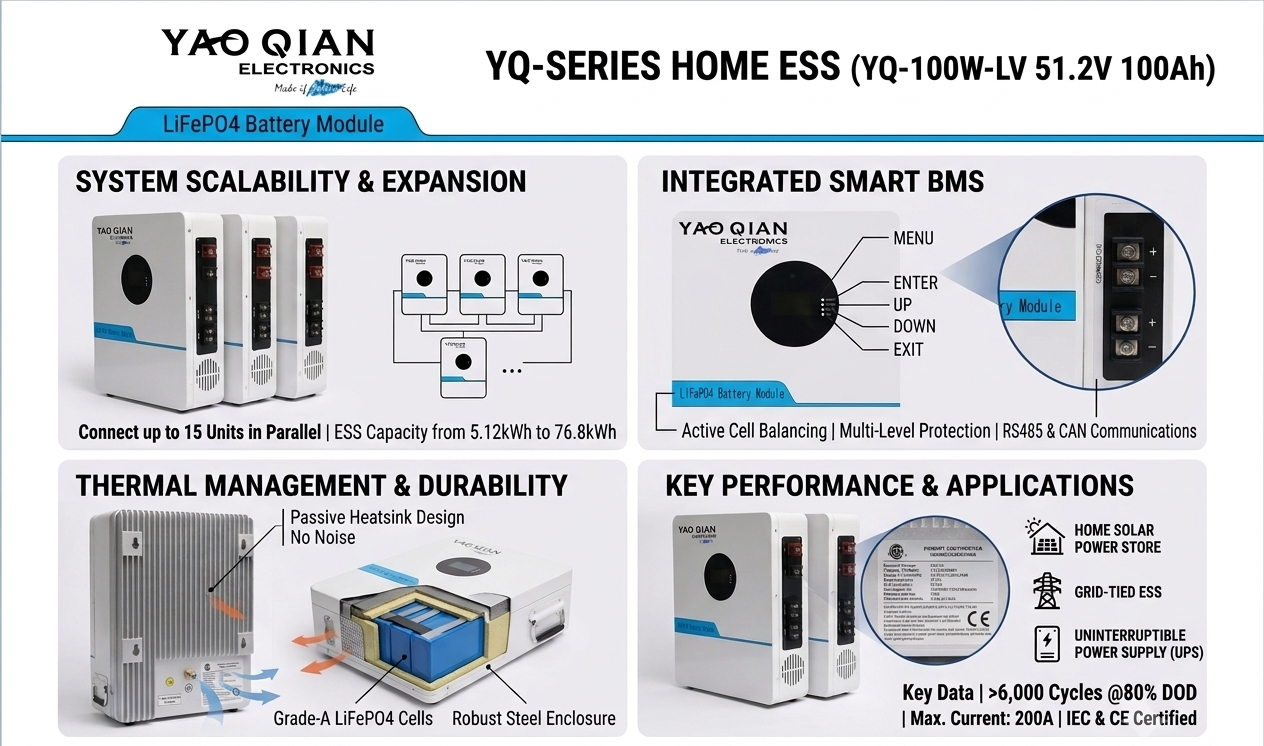

4. Expandable Energy Storage CapacitySupports parallel connection for flexible capacity expansion to meet different household energy requirements.
5. Universal Inverter CompatibilityCompatible with leading hybrid inverters via RS485/CAN communication for seamless solar storage integration.
Specifiction
12V/24V Series | 51.2V Series | |||||
Parameter | YQ-90W-LV | YQ-105W-LV | YQ-120W-LV | YQ-100W-LV | YQ-150W-LV | YQ-200W-LV |
Battery Material | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 |
Nominal Voltage(V) | 12.8 | 25.6 | 25.6 | 51.2 | 51.2 | 51.2 |
Nominal Capacity(Ah) | 90 | 105 | 120 | 100 | 150 | 200 |
Total Energy(kWh) | 1.15 | 2.68 | 3.07 | 5.12 | 7.68 | 10.24 |
Max. Charge Voltage (V) | 14.4 | 28.8 | 28.8 | 57.6 | 57.6 | 57.6 |
Discharge Cut-off Voltage (V) | 10 | 20 | 20 | 40 | 40 | 40 |
Max. Charge/Discharge Current (A) | 100 | 100 | 100 | 100 | 150 | 200 |
Scalability (Parallel) | 2S2P | Up to 15 units in parallel | Up to 15 units in parallel | Up to 15 units in parallel | Up to 15 units in parallel | Up to 15 units in parallel |
Communication Interface | RS485 / CAN / Bluetooth | RS485 / CAN / Bluetooth | RS485 / CAN / Bluetooth | RS485 / CAN / Bluetooth | RS485 / CAN / Bluetooth | RS485 / CAN / Bluetooth |
Cycle Life | >6,000 Cycles @ 25°C, 80% DOD | >6,000 Cycles @ 25°C, 80% DOD | >6,000 Cycles @ 25°C, 80% DOD | >6,000 Cycles @ 25°C, 80% DOD | >6,000 Cycles @ 25°C, 80% DOD | >6,000 Cycles @ 25°C, 80% DOD |
Storage Temperature (°C) | -20 ~ 55 | -20 ~ 55 | -20 ~ 55 | -20 ~ 55 | -20 ~ 55 | -20 ~ 55 |
Operating Temperature (°C) | Charge: 0~55 / Discharge: -20~55 | Charge: 0~55 / Discharge: -20~55 | Charge: 0~55 / Discharge: -20~55 | Charge: 0~55 / Discharge: -20~55 | Charge: 0~55 / Discharge: -20~55 | Charge: 0~55 / Discharge: -20~55 |
Protection Function | Over-charge, Over-discharge, Over-current, Temperature protection, etc. | Over-charge, Over-discharge, Over-current, Temperature protection, etc. | Over-charge, Over-discharge, Over-current, Temperature protection, etc. | Over-charge, Over-discharge, Over-current, Temperature protection, etc. | Over-charge, Over-discharge, Over-current, Temperature protection, etc. | Over-charge, Over-discharge, Over-current, Temperature protection, etc. |
Dimensions (mm) | 420*380*100 | 420*380*143 | 450*380*170 | 680*450*180 | 680*450*180 | 680*450*180 |
Weight (kg) | 12±1 | 26.5±1 | 30±1 | 45±1 | 70±1 | 85±1 |
